1974–1976 Carrera 2.7 MFI Specifications
Engine
Displacement
2,687cc (164.0 cu.in.)
Horsepower
210 @ 6,300 RPM
Torque
188 lb-ft @ 5,100 RPM
Bore
90 mm
Stroke
70.4 mm
Compression ratio
8.5:1
Piston material
Forged aluminum alloy
Fuel system
6-plunger MFI pump
Lubrication
Dry sump w/ cooler
Electrical system
12-volt
Exhaust system
Single
Transmission
Type
5-speed manual
Final drive ratio
4.429:1
1st gear
3.181:1
2nd gear
1.833:1
3rd gear
1.261:1
4th gear
0.926:1
5th gear
0.724:1
Reverse
3.325:1
Differential
Spiral bevel (LSD optional)
Steering & Brakes
Steering type
Rack and pinion
Steering ratio
17.78:1
Turning circle
35.1 feet
Brakes
Vented discs (4-wheel)
Brake system
Hydraulic, dual-circuit
Chassis & Body
Construction
Unitized welded steel
Body style
Two-door coupe
Layout
Rear engine, RWD
Suspension
Front
Independent, torsion bars
Front details
Transverse control arms, 19mm bars, 20mm anti-roll, Bilstein shocks
Rear
Independent, torsion bars
Rear details
Trailing arms, 23mm bars, 18mm anti-roll, Bilstein shocks
Wheels & Tires
Wheels
Fuchs 5-spoke alloy
Front wheels
6J x 15 (7J optional)
Rear wheels
7J x 15 (8J optional)
Front tires
185/70VR15
Rear tires
215/60VR15
Dimensions
Weight
2,370 lbs (1,075 kg)
Wheelbase
89.4 inches
Length
168.9 inches
Width
63.4 inches
Height
52.0 inches
Front track
54.1 inches
Rear track
54.3 inches
Capacities
Fuel tank
21.1 gallons
Crankcase
2.9 gallons
Transmission
3.2 quarts
Performance
0-60 mph
6.1 seconds
Top speed
148 mph
Standing kilometer
26.5 seconds
Power-to-weight
11.3 lbs/hp
Specific output
78 hp/liter
Interior Materials

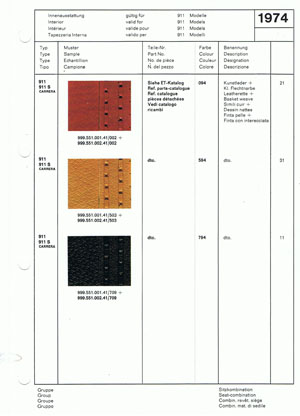

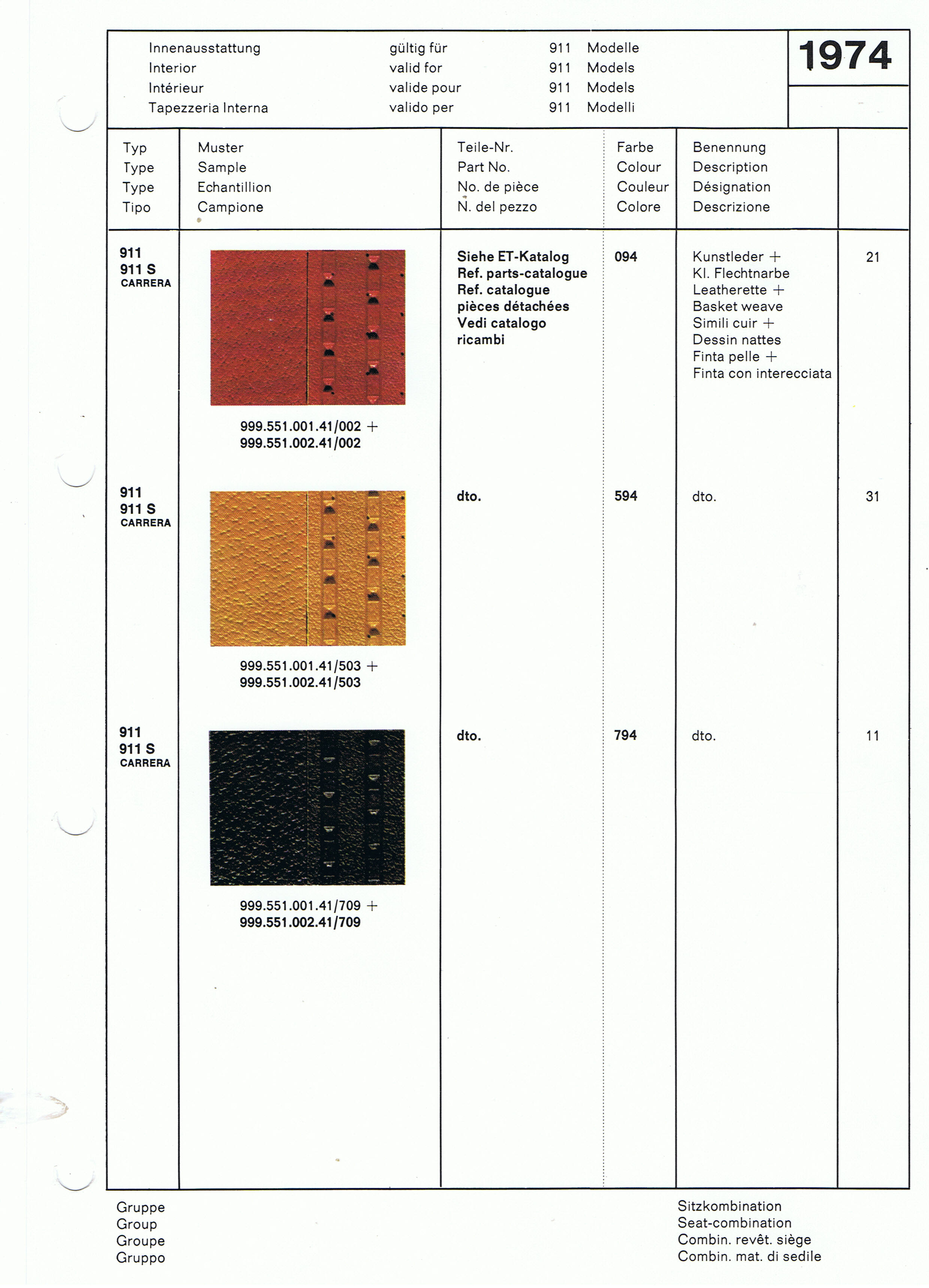

1974 Embossed Vinyl

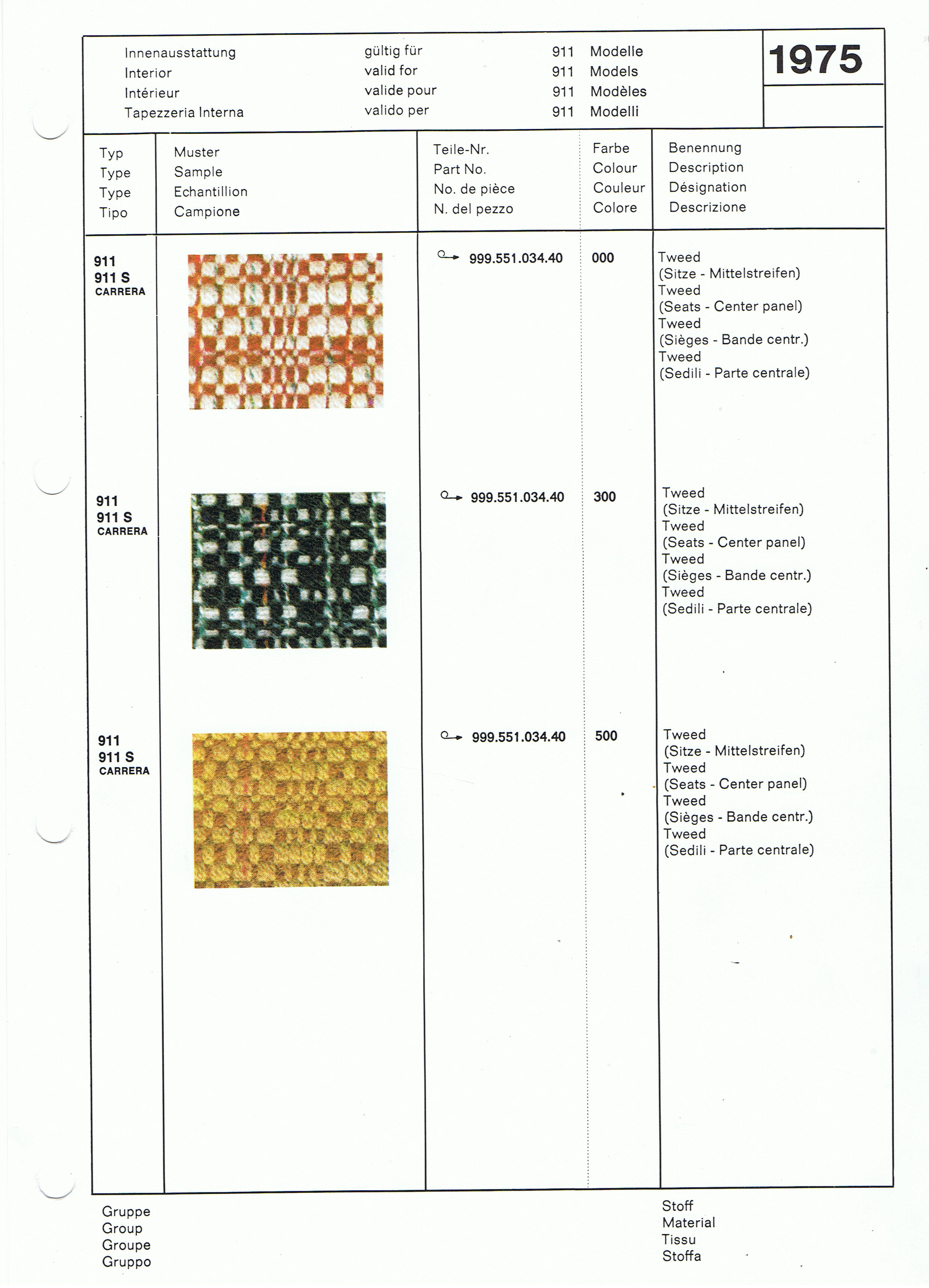

1975 Tweed

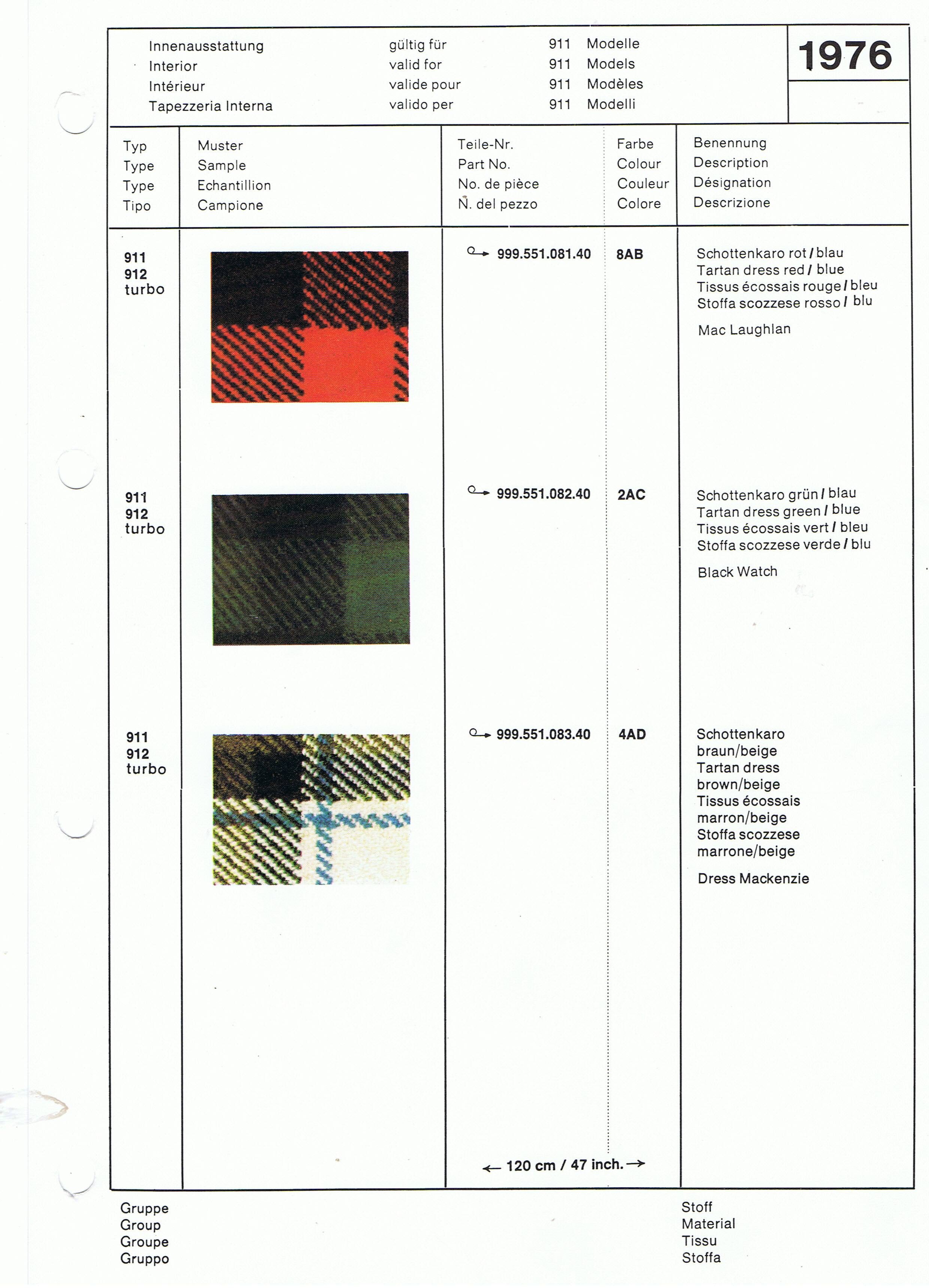

1976 Tartan
